Sensitivity range: 0.3 – 25.0 µm; 1.0 CFM (28.3 LPM) – Built-in vacuum, PoE

The 2-time award-winning IsoAir® Pro remote particle counter is the next-generation in Contamination Control Strategy It is a fixed environmental monitoring instrument that uses the latest technologies to simplify cleanroom monitoring into a compact, flexible, and powerful package that meets the needs of pharmaceutical and high-tech contamination control monitoring.

This remote particle counter enables you to monitor closer to critical control points than ever before. With the Power over Ethernet (PoE) and WiFi options, and a standard internal blower, it requires very few external connections and supporting equipment, or choose from a list of power and communication options to meet your specific needs. Additionally, the Isokinetic Sampling Probe (ISP) can be mounted directly to the inlet or extended from the particle sensor with flexible or rigid tubing in virtually any installation.

The robust 316L stainless steel enclosure is robust and liquid resistant with IP65 and NEMA 4X ratings. The quick-release mounting bracket stores essential sensor data such as the IP address at the point of measurement, reducing the time and complexity of unit installation after calibration or servicing. Data from the instrument can be securely and reliably incorporated into either a Particle Measuring Systems’ FacilityPro® Monitoring System or one of our facility monitoring software packages, with the option of third-party communications via Modbus TCP/IP or optional PMS TCP/IP protocols.

You choose the options your manufacturing requires:

  • Power supply (PoE, 100 – 240 VAC, or 24 VDC)
  • Wireless communications
  • Analog & Digital I/O

The following features come standard with the IsoAir Pro line of remote particle counters:

  • 8 sample channels from 3 -25 µm (including 2-channel “Pharma Mode”)
  • Integrated HEPA-filtered blower, eliminating the need for an external vacuum
  • 316L stainless steel enclosure with IP65 & NEMA 4X ratings
  • Resistant to Vaporized Hydrogen Peroxide (VHP)
  • Quick-release mounting bracket stores sensor ID data for easy connection
  • Easily connect to PMS or third-party facility monitoring and compliant data management software systems
  • Global regulatory and ISO standard compliance
  • Highly regarded world-class PMS instrument service and support



The IsoAir Pro remote particle counter is part of the PRO Series from PMS, a complete collection of contamination monitoring tools developed from a decades-long commitment to supporting pharmaceutical manufacturers. Use the IsoAir Pro remote particle counter together with other products in the PRO Series for a total contamination control solution and the assurance of up-to-date compliance. The PRO Series helps you provide lifesaving and life-changing solutions for your customers by supporting clean manufacturing.

The IsoAir Pro remote particle counter is currently available in 2 models (IsoAir Pro-E, IsoAir Pro-Plus). Learn more about each instrument by clicking the buttons below or contact us about your specific needs.

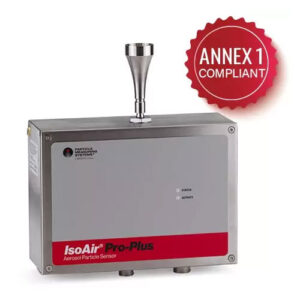

IsoAir® Pro-Plus

Remote Particle Counter: IsoAir® Pro-Plus

DOWNLOAD IsoAir® Pro-Plus

Resources

Sensitivity range: 0.3 – 25.0 µm; 1.0 CFM (28.3 LPM) – Built-in pump, choose wireless, analog & digital I/O

Particle Measuring Systems (PMS) is proud to introduce the IsoAir Pro-Plus remote particle counter. This next-generation in Contamination Control Strategy is a fixed environmental monitoring instrument that uses the latest technologies to simplify cleanroom monitoring into a flexible and powerful package that meets global regulations.



Data from the instrument can be incorporated into either Particle Measuring Systems’ FacilityPro® Monitoring System or Facility Net software, with the option of third-party communications via Modbus TCP/IP or optional PMS TCP/IP protocols.

The robust 316L stainless steel enclosure is liquid resistant with IP65 and NEMA 4X ratings. The quick-release mounting bracket stores essential sensor data such as the IP address at the point of measurement, reducing the time and complexity of unit installation after calibration or servicing. The Isokinetic Sampling Probe (ISP) can be mounted directly to the inlet, extended from the particle sensor with rigid stainless steel tubing, or remotely positioned with flexible tubing in virtually any installation. This remote particle sensor is “plug-n-play” with no complex re-programming required.

The IsoAir Pro-Plus Remote Particle Counter has its own blower, eliminating the need for an external vacuum, and uses either 100 – 240 VAC or 24 VDC input power.

IsoAir® Pro-E

Remote Particle Counter: IsoAir® Pro-E

DOWNLOAD IsoAir® Pro-E

Resources

Sensitivity range: 0.3 – 25.0 µm; 1.0 CFM (28.3 LPM) – Built-in vacuum, VHP Resistant, POE

A compact, VHP resistant remote particle counter.

As part of a facility monitoring solution, the IsoAir® Pro-E Remote Particle Counter from Particle Measuring Systems (PMS) is an effective piece of a Contamination Control Strategy using the latest technologies to streamline cleanroom monitoring while meeting global regulations including EU GMP Annex 1, ISO 14644-2, and part of a 21CFR Part 11 solution. This remote particle counter has all the features you need for reliable particle monitoring in your clean area built into a simple but powerful package.

This is the first particle counter with a built-in vacuum designed for use with the Vaporized Hydrogen Peroxide (VHP) process. Additionally, this cleanroom monitoring instrument is powered by Power over Ethernet (POE) and with the internal blower, it requires very few external connections and supporting equipment.

Data from the instrument can be incorporated into either Particle Measuring Systems’ FacilityPro Software or Facility Net Monitoring System, with the option of third-party communications via Modbus or PMS protocol.

The quick-release mounting bracket stores essential sensor data such as the IP address at the point of measurement, reducing the time and complexity of unit installation after calibration or servicing. This remote particle sensor is “plug-n-play” with no complex re-programming before reinstallation into the particle monitoring system.

Highly user-friendly, the IsoAir Pro-E Remote Particle Counter has its own blower, eliminating the need for an external vacuum, and uses Power over Ethernet (PoE) to combine communications and power into a single connection. Additionally, the robust 316L stainless steel enclosure is liquid resistant with IP65 and NEMA 4X ratings which protect the unit during cleaning and disinfection activities.
